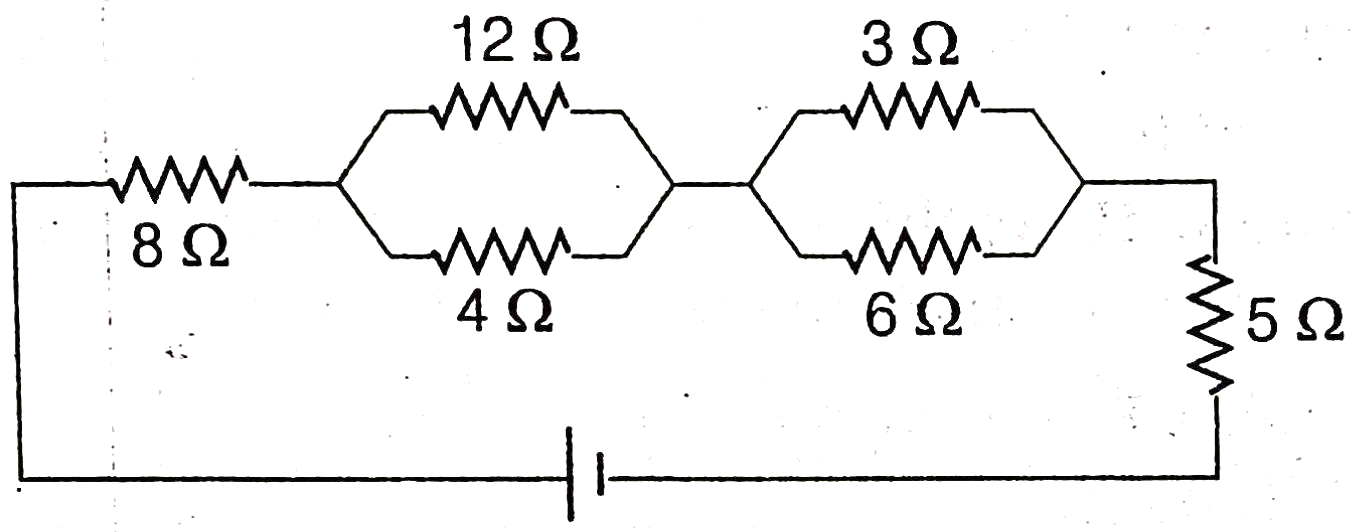

In the circuit diagram shown in figure, potential difference across resistance is 20 V. Then, match the following two columns and choose the correct option from codes given below.

Column I

          Column II

A.

Potential difference across  resistance

I.

30 V

B.

Potential difference across  resistance

II.

50 V

C.

Potential difference across  resistance

III.

20 V

D.

Potential difference across  resistance

IV.

80 V

Choose the correct answer from the options given below.

A
A-IV, B-III, C-II, D-I
B
A-III, B-I, C-II, D-IV
C
A-I, B-IV, C-III, D-II
D
A-II, B-III, C-IV, D-I

Share this question

WhatsApp

For Instagram sharing, use “Apps” on mobile or copy the link.

Text Solution

Verified by Experts
The correct answer is:
B

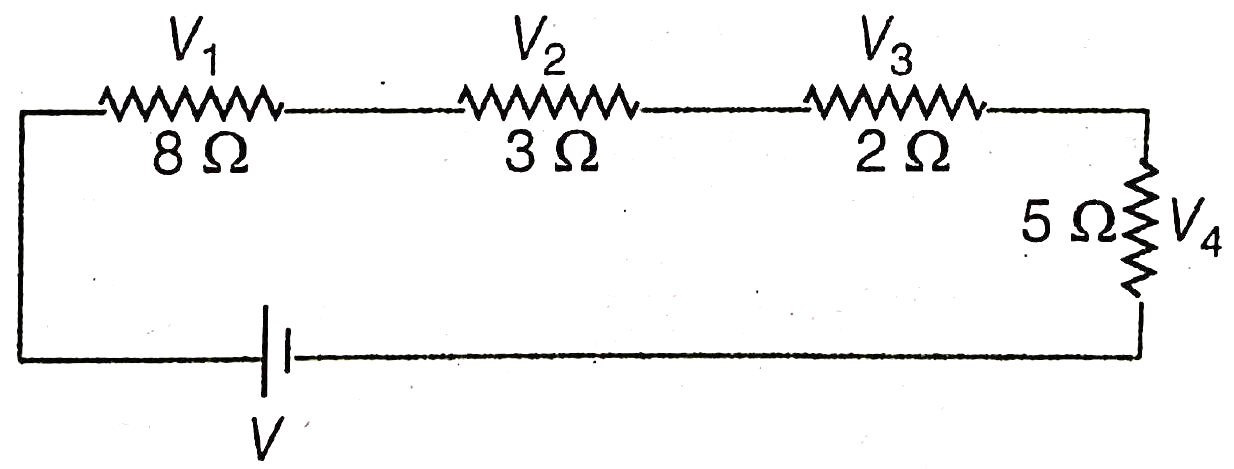

The simple circuit is shown in below figure

As, and are in parallel connection.

Hence, potential difference across is also 20 V .
And, for
Similarly, for and ,




Hence, A-(III), B-(I), C-(II) and D-(IV).
