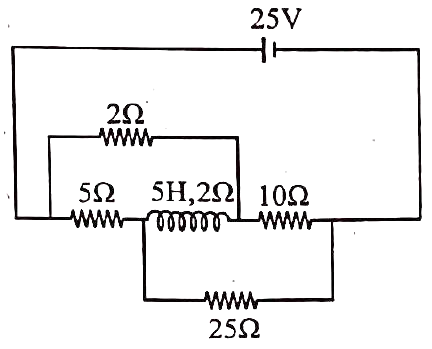

In the circuit shown, what is the energy stored in the coil at steady state?
Text Solution
Verified by ExpertsThe correct answer is:
C
Four resistance form a balanced Wheatstone bridge So no current will flow through the inductor. Hence, stored energy in coil is zero.
