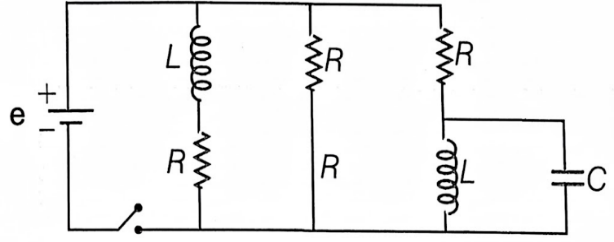

Figure shows a circuit that contains three identical resistors with resistance
each, two identical inductors with inductance
each, and an ideal battery with emf
. The current i through the battery just after the switch closed is [NEET 2011]
Text Solution
Verified by ExpertsThe correct answer is:
C
Just after switch is closed, given circuit is equivalent to the circuit shown below.
So, equivalent resistor
ohms
Battery emf,
volts
Current in circuit
