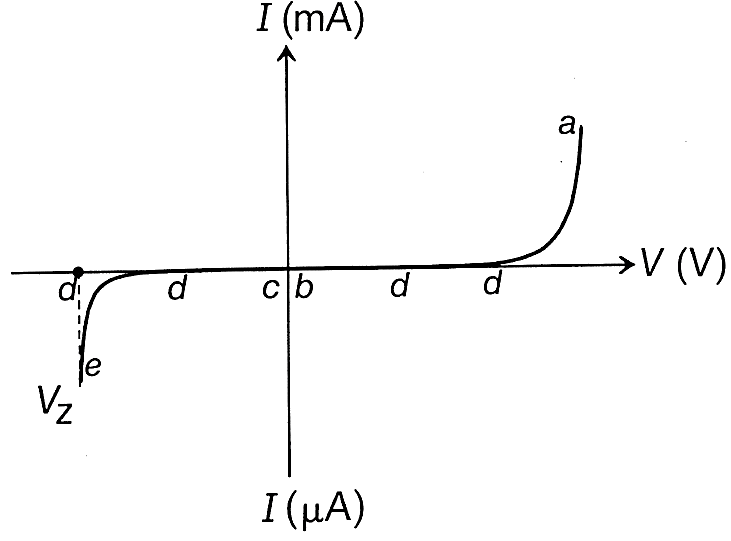

The graph given below represents the
characteristics of a Zener diode. Which part of the characteristics curve is most relevant for its operation as a voltage regulator?
A
B
C
D
de
Text Solution
Verified by ExpertsThe correct answer is:
D

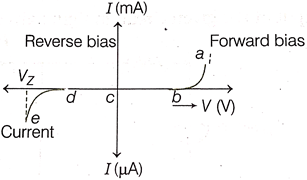

If the reverse bias voltage is greater than the
, then there is breakdown condition. In breakdown region, i.e.
and for a long range of load
, the voltage is constant.
