The combination of gates shown below yields is
Text Solution
Verified by ExpertsThe correct answer is:
D

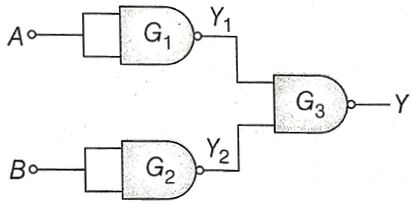

The combination of three NAND gates are shown in the diagram
Output due to NAND gate
Output due to NAND gate
Output due to NAND gate 3
This is OR gate. Hence, the combination is equivalent to an OR gate.
