A zener diode is to be used as a voltage regulator. Identify the correct set up

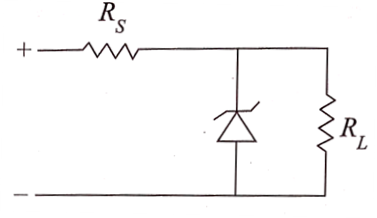

A

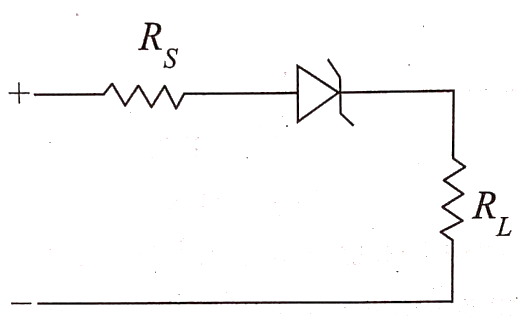

B

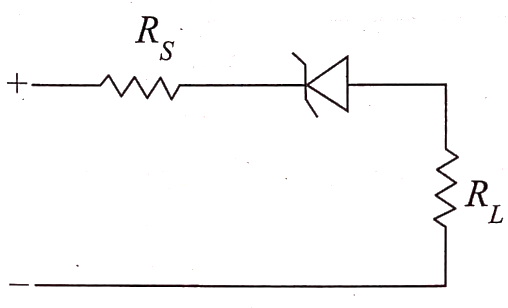

C

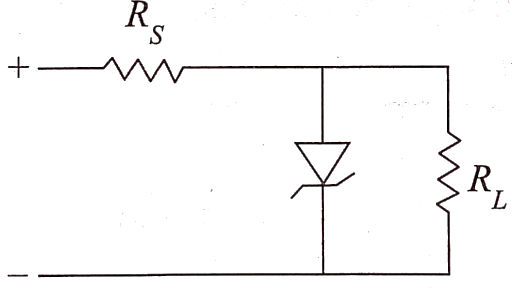

D
Text Solution
Verified by ExpertsThe correct answer is:
A
Zener diode is in parallel to load resistance and is connected in reverse bias.
