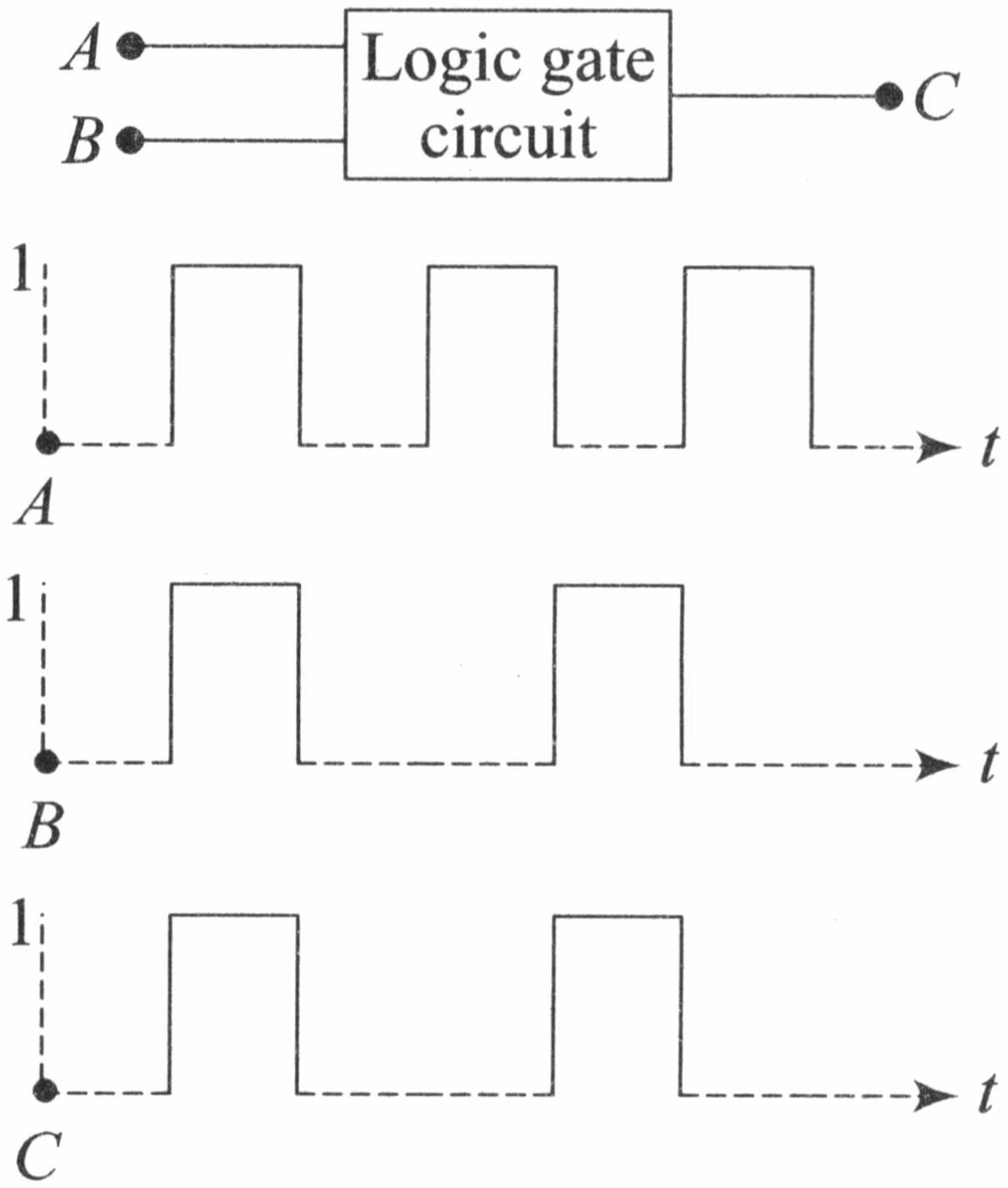

The following figure shows a logic gate circuit with two inputs
and
and the output
. The voltage waveforms of
and
are as shown below The logic circuit gate is [2006]
Text Solution
Verified by ExpertsThe correct answer is:
A
The Boolean expression which satisfies the output of this logic gate is
, which is for AND gate.
