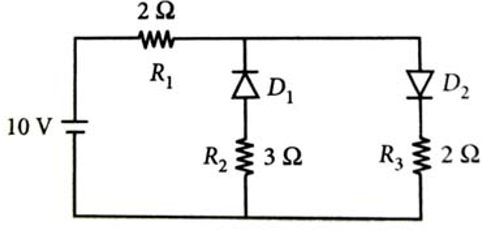

The given circuit has two ideal diodes connected as shown in the figure. The current flowing through the resistance
will be [2016]
A
1.43
B
3.13 A
C
2.5
D
10.0 A
Text Solution
Verified by ExpertsThe correct answer is:
C
The diode
will be be in reverse bias, so it will block the current and diode
will be in forward bias, so it will pass the current.
