Two charged thin infinite plane sheets of uniform surface charge density
and
where
intersect at right angle. Which of the following best represents the electric field lines for this system?

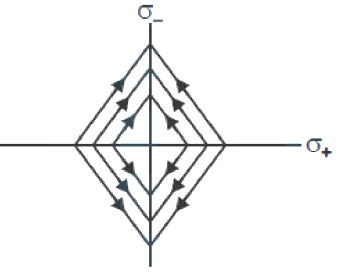

A

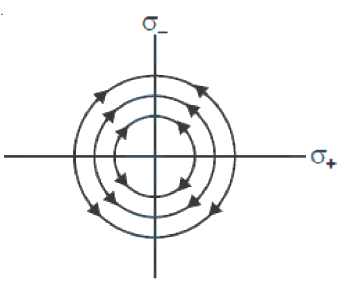

B

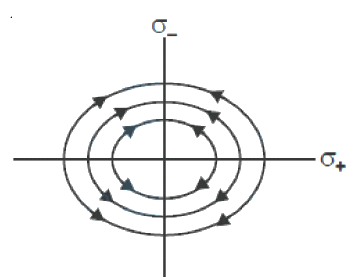

C

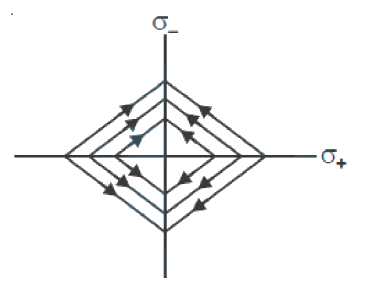

D
Text Solution

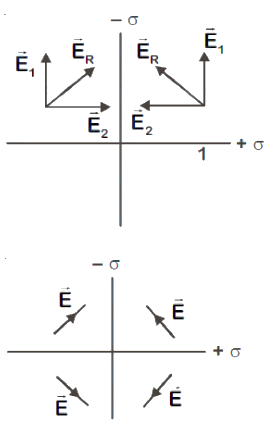

Verified by ExpertsThe correct answer is:
D
JEE Main 2020
