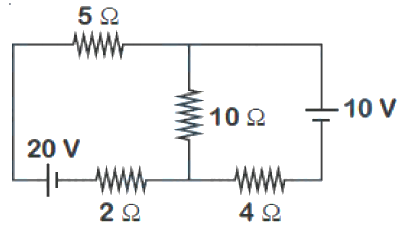

In the figure shown, the current in the
battery is close to
A
from negative to positive terminal B
from positive to negative terminal C
from positive to negative terminal D
from positive to negative terminal
Text Solution
Verified by ExpertsThe correct answer is:
D
JEE Main 2020

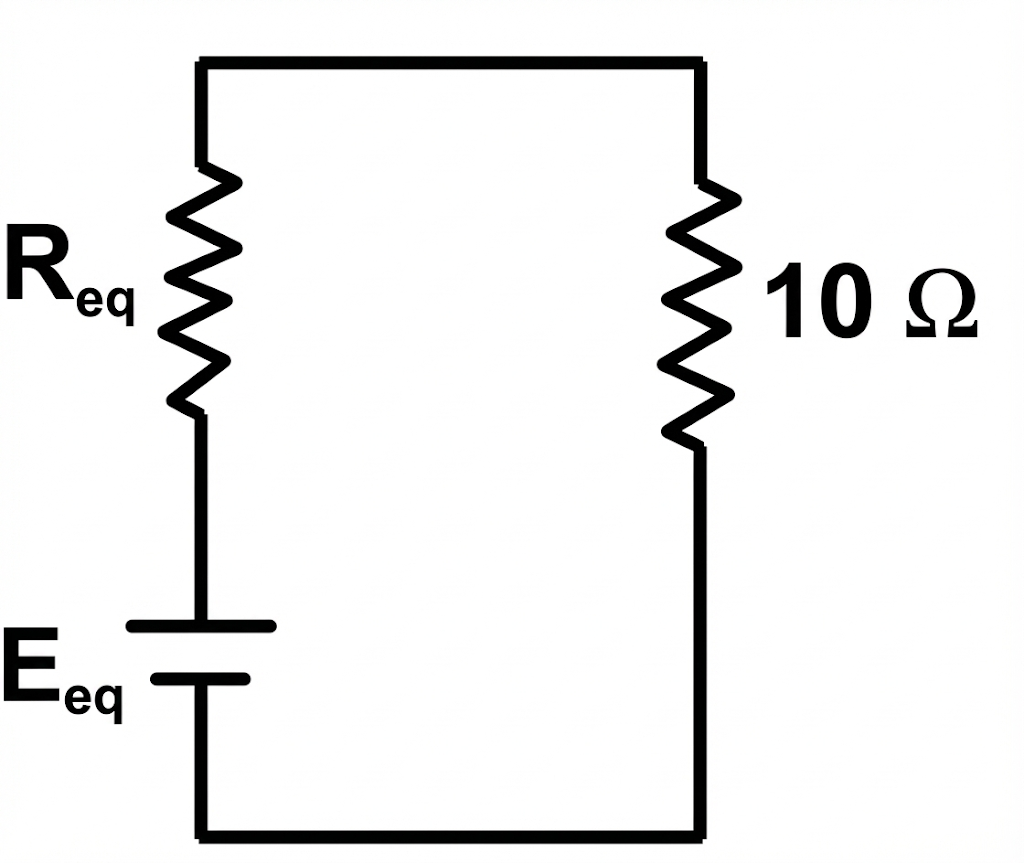

Circuit can be reduced to
