A circular platform is free to rotate in a horizontal plane about a vertical axis passing through its centre. A tortoise is sitting at the edge of the platform. Now the platform is given an angular velocity

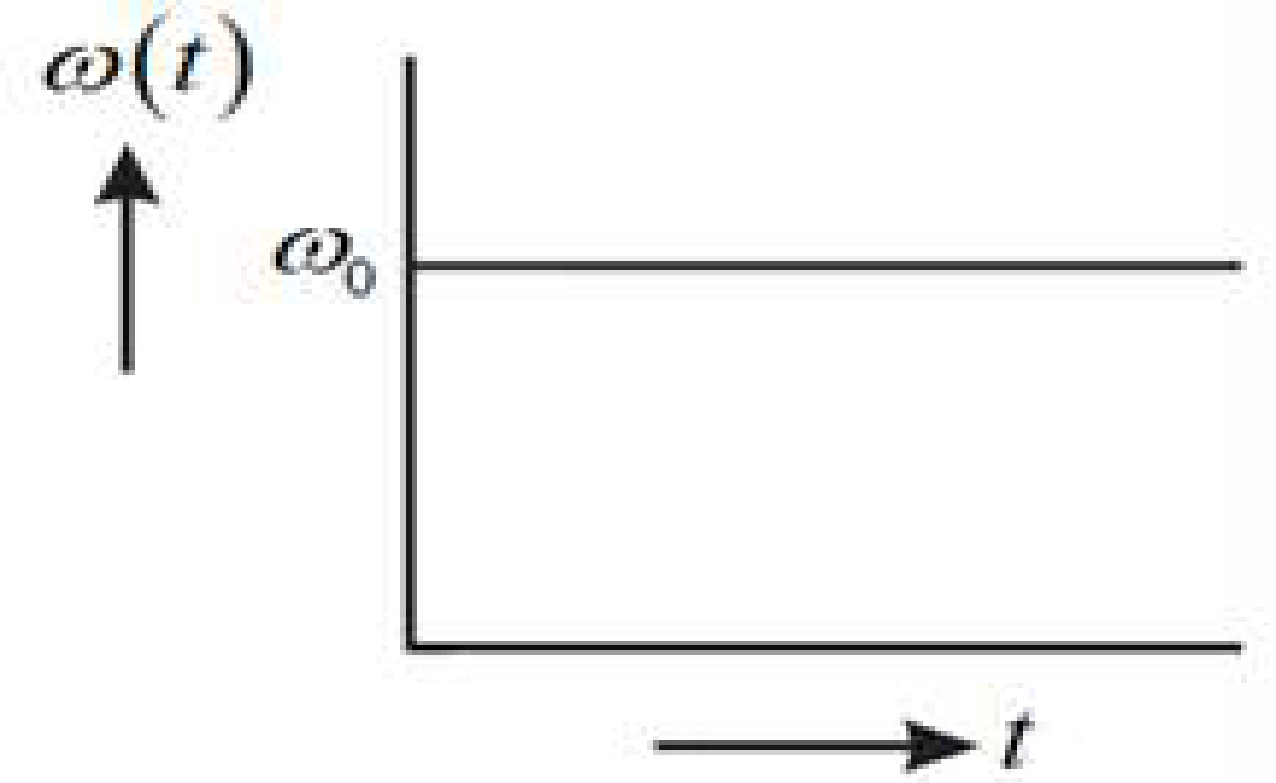

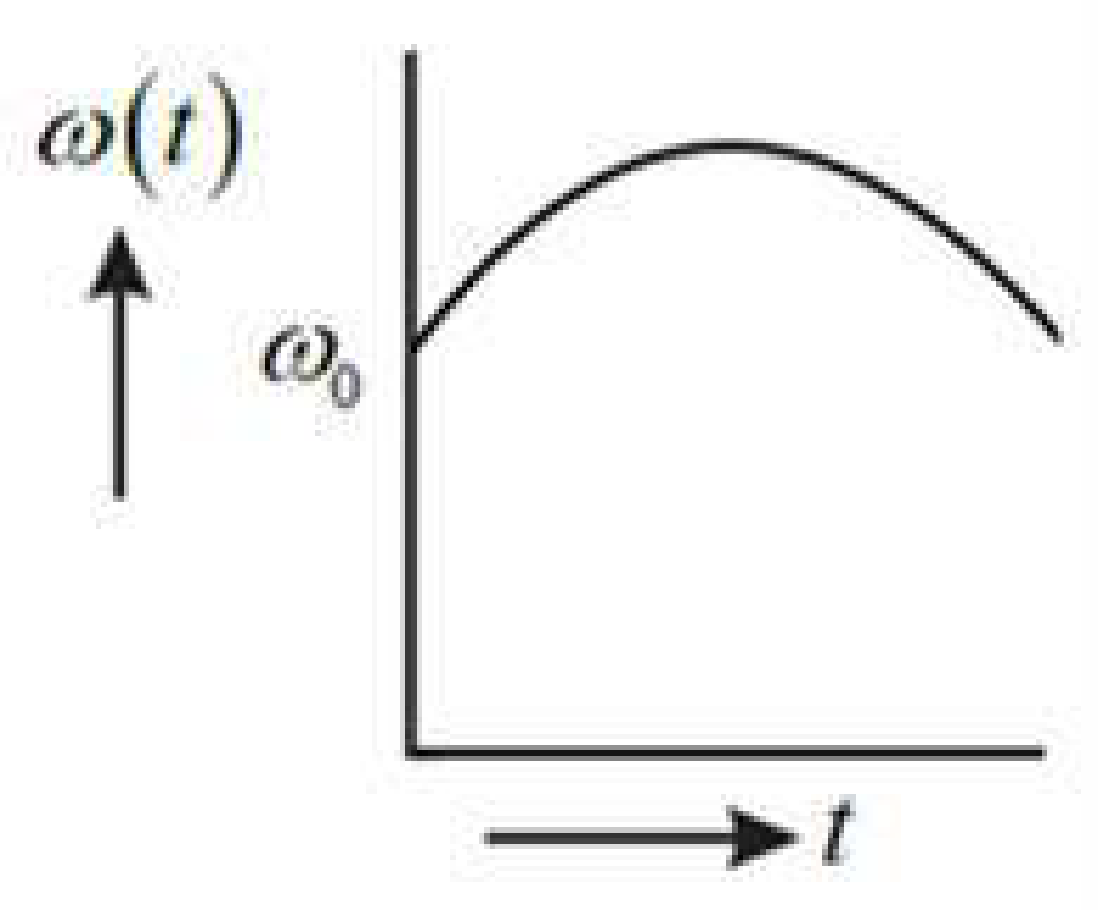

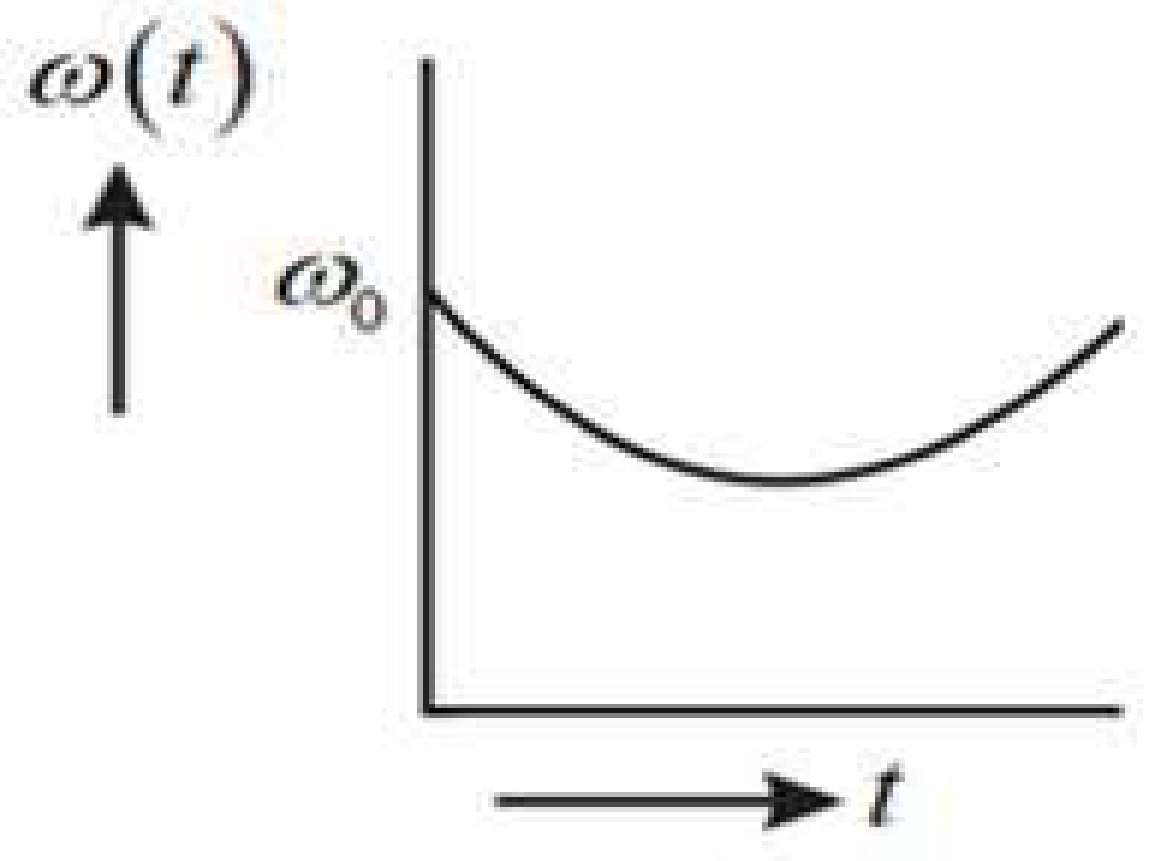

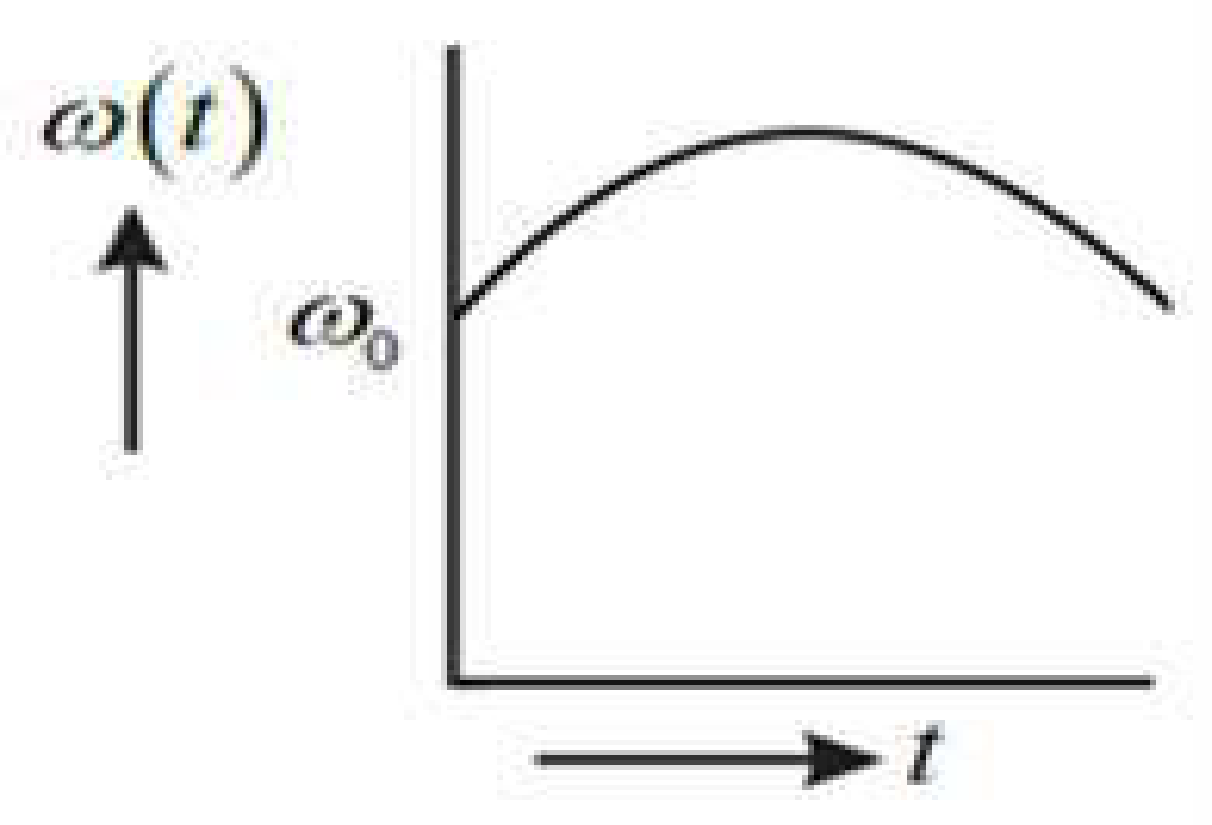

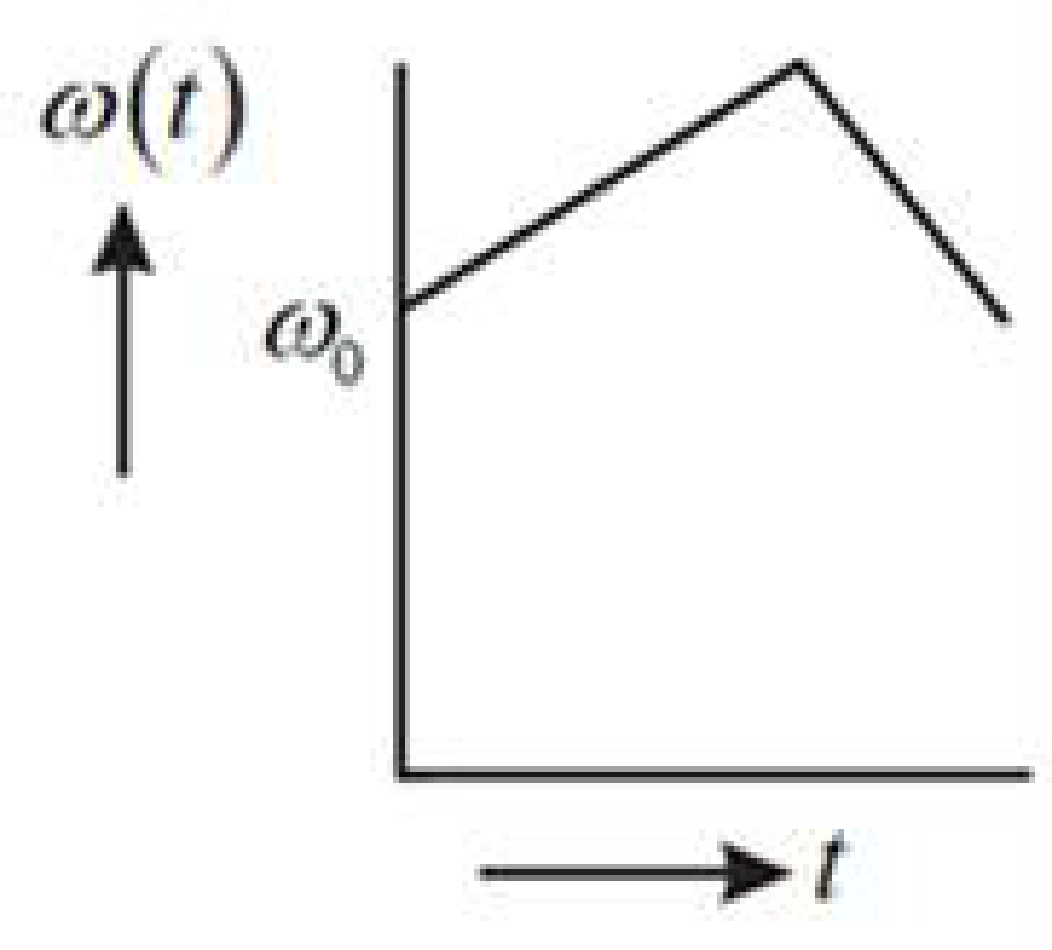

. When the tortoise moves along a chord of the platform with a constant velocity (w.r.t. the platform), which of the following graphs shows properly the variation of angular velocity of the platform with the time t?
Text Solution
Verified by ExpertsC

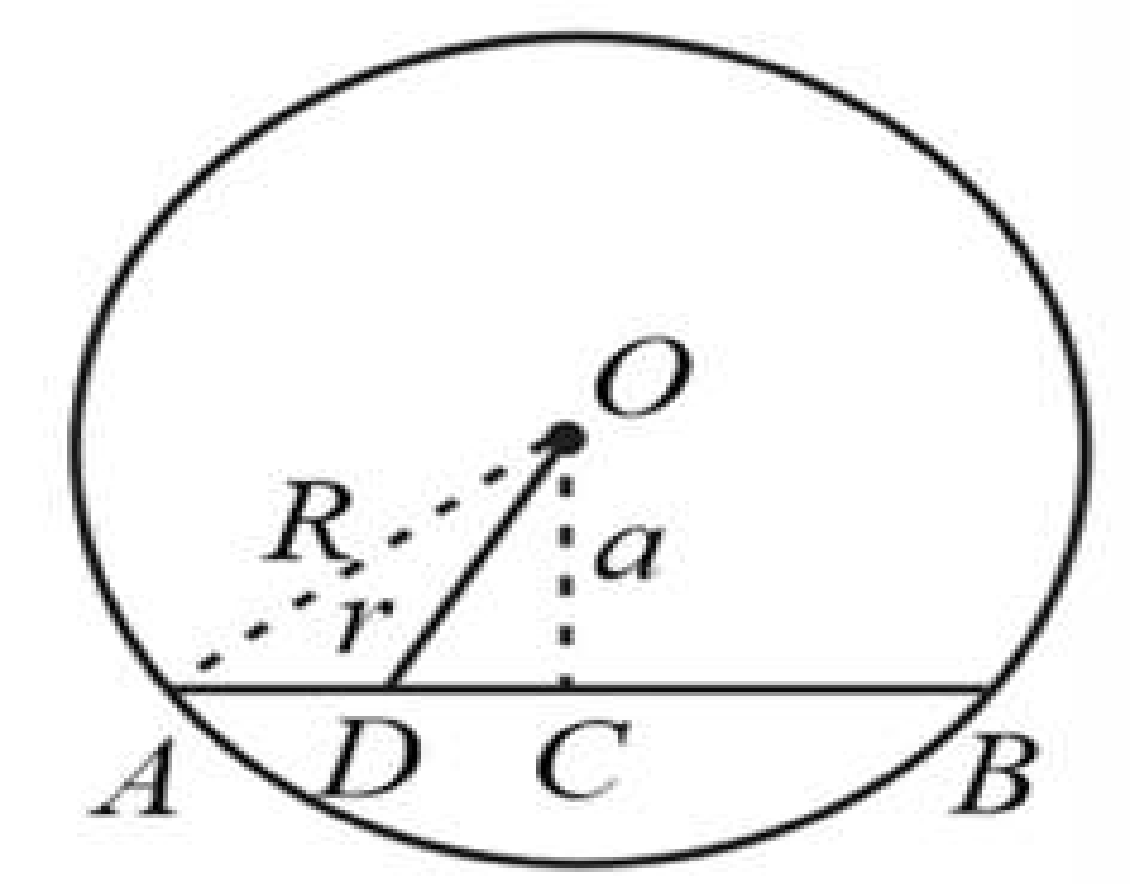

As there is no external torque, angular momentum will remain constant. When the tortoise moves from A to C, figure, moment of inertia of the platform and tortoise decreases. Therefore, angular velocity of the system increases. When the tortoise moves from C to B, moment of inertia increases. Therefore, angular velocity decreases
If, M=mass of platform
R =radius of platform
m =mass of tortoise moving along the chord AB
a =perpendicular distance of O from AB
Initial angular momentum,
At any time t, let the tortoise reach D moving with velocity v
As
Angular momentum at time t.
As angular momentum is conserved
This shows that variation of
with time is nonlinear. Choice
