If AB is an isothermal, BC is an isochoric and AC is an adiabatic, which of the graphs correctly represents given in figure?

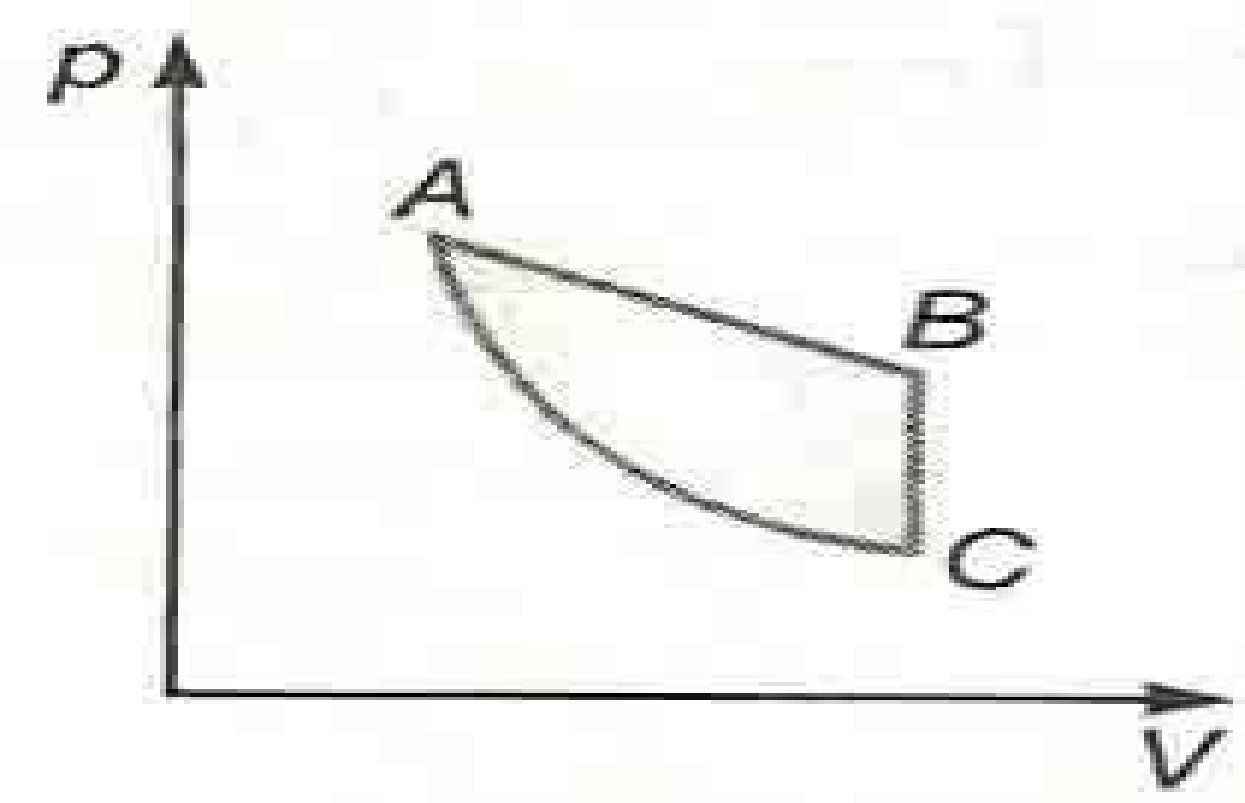

A

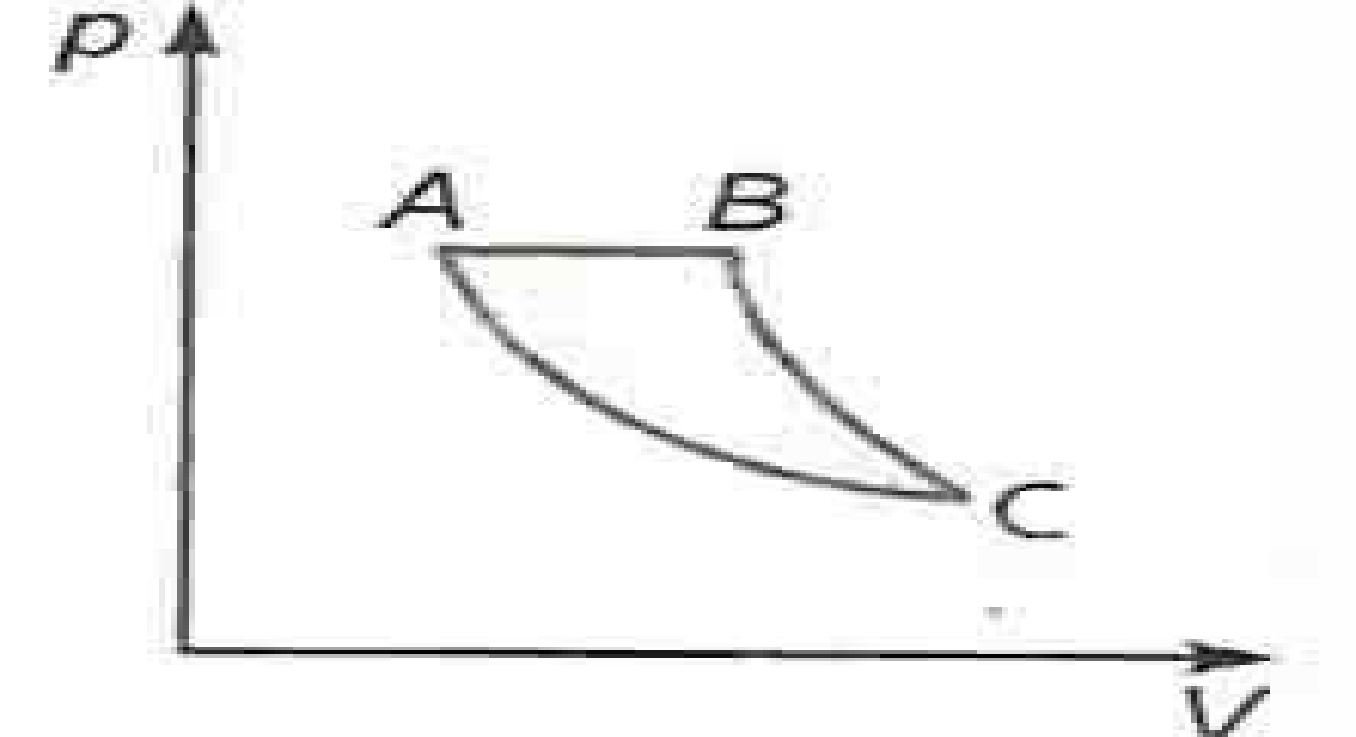

B

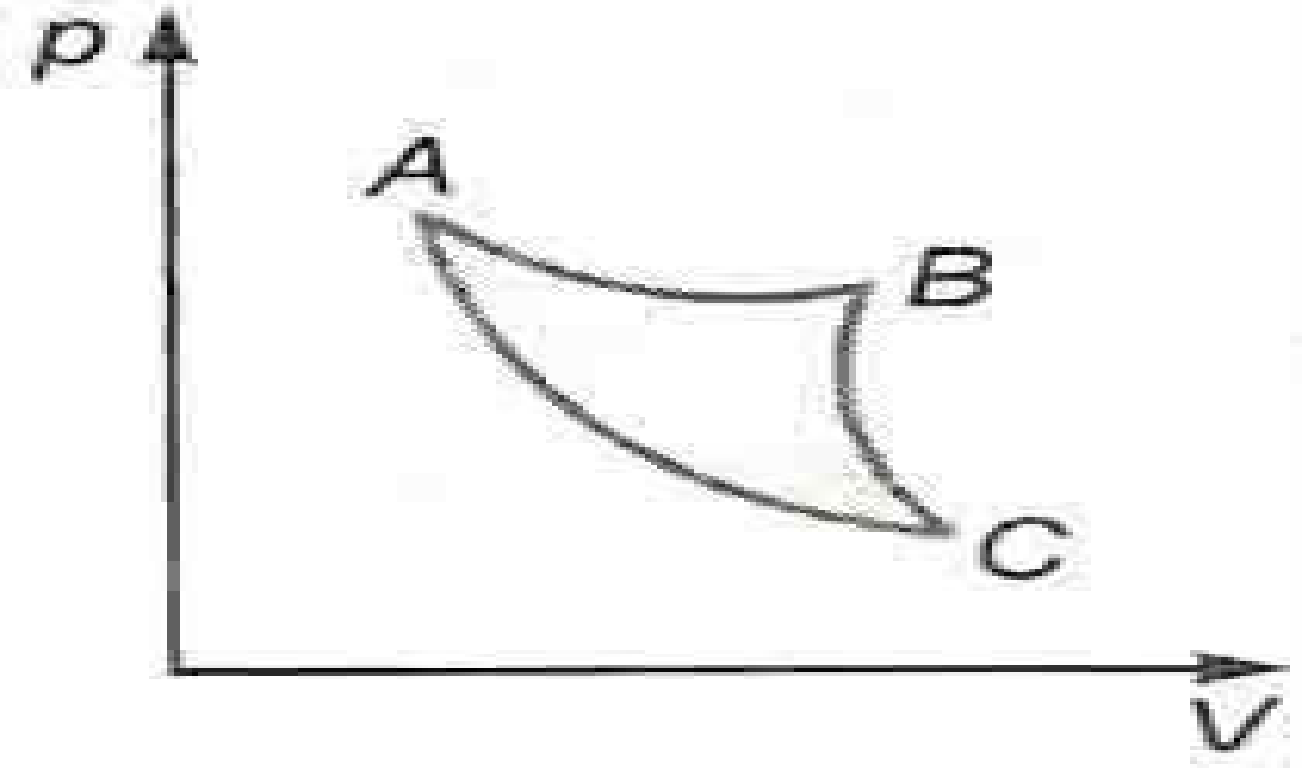

C

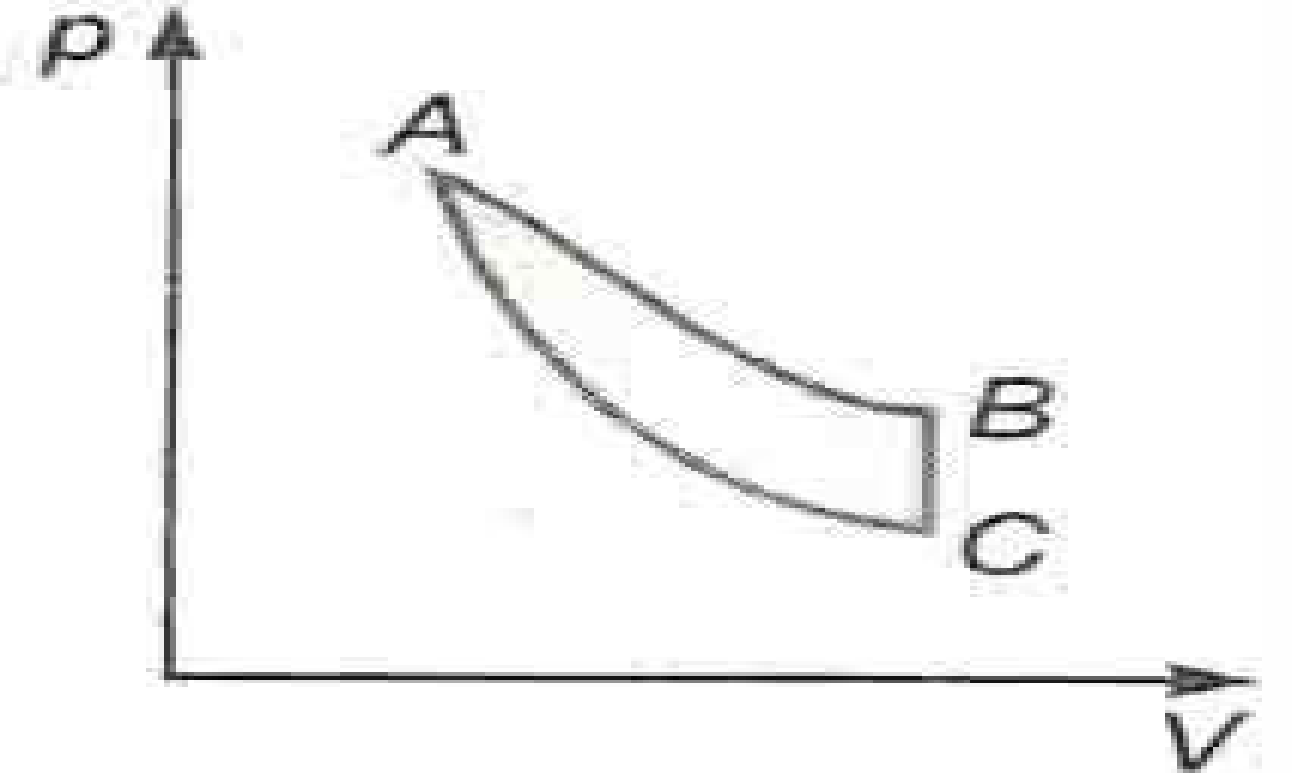

D
Text Solution
Verified by ExpertsThe correct answer is:
B
As slope of adiabatic
is more than the slope of isothermal
, and BC is isochoric (
at constant volume), therefore, figure represents the curves correctly
