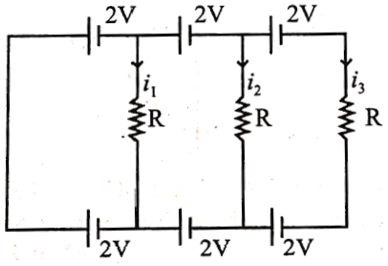

Find the current in the three resistors as shown in the following figure?
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
B
For left most loop, by KVL
For middle loop, by KVL
For right most loop, by KVL
