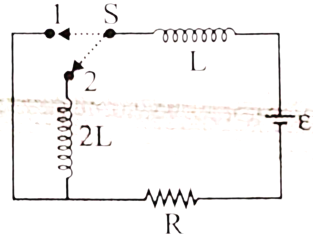

In the circuit shown, the switch S is shifted to position 2 from position 1 at
, having been in position 1 for a long time. Find the ratio of current in the inductor (
) just before and just after the switch
is shifted.
Text Solution
Verified by ExpertsThe correct answer is:
3
(3) Since the flux associated with inductors will be same just before and just after the shifting of switch. (otherwise the induced emf would be infinite).
