A zener diode with 5 V zener voltage is used to regulate an unregulated dc voltage input of 25 V. For a
resistor connected in series, the zener current is found to be 4 times load current. The load current
and load resistance (
) are:
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
C

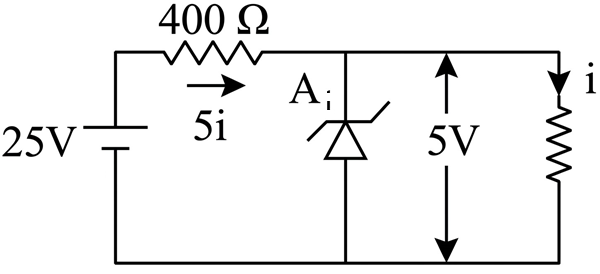

From the circuit diagram,
Also,
