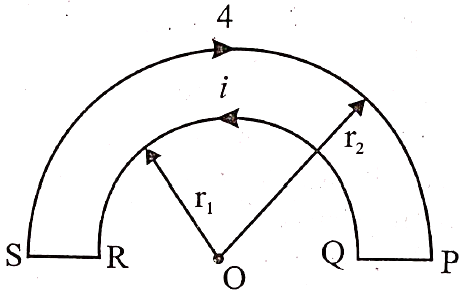

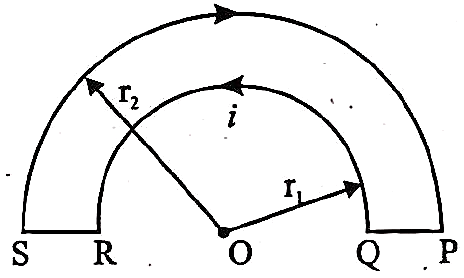

A wire loop PQRSP is constructed by joining two semicircular coils of radii r 1 and r 2 , respectively as shown in the figure. If the current flowing in the loop is i, then the magnetic induction at the point O is:
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
A
(vertically upward)
(vertically downward)
So,
