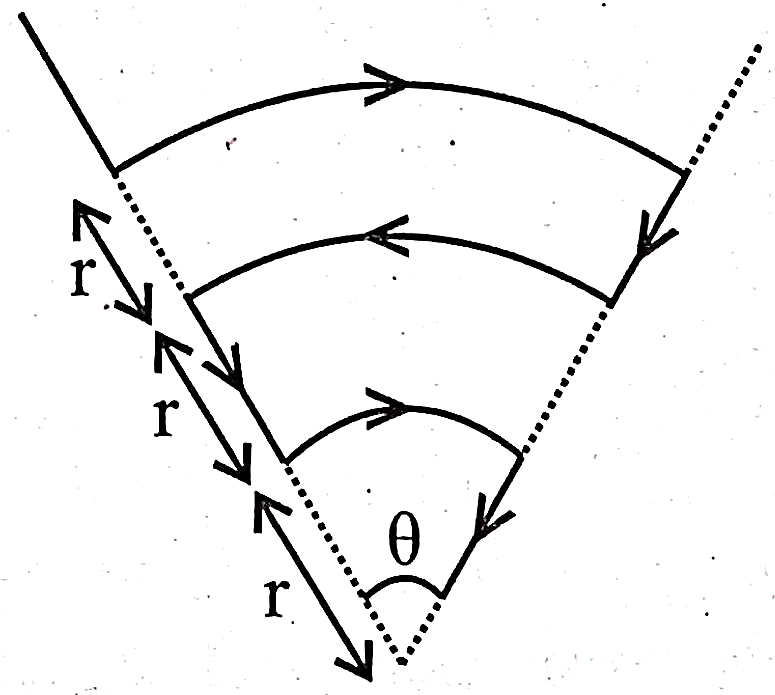

A conductor carrying current I is in the shape as shown in figure. Find the magnetic field induction at the common center O of all the three area.
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
B
We know that
due to the arc
Total magnetic field induction at O. due to current through the three arc is
