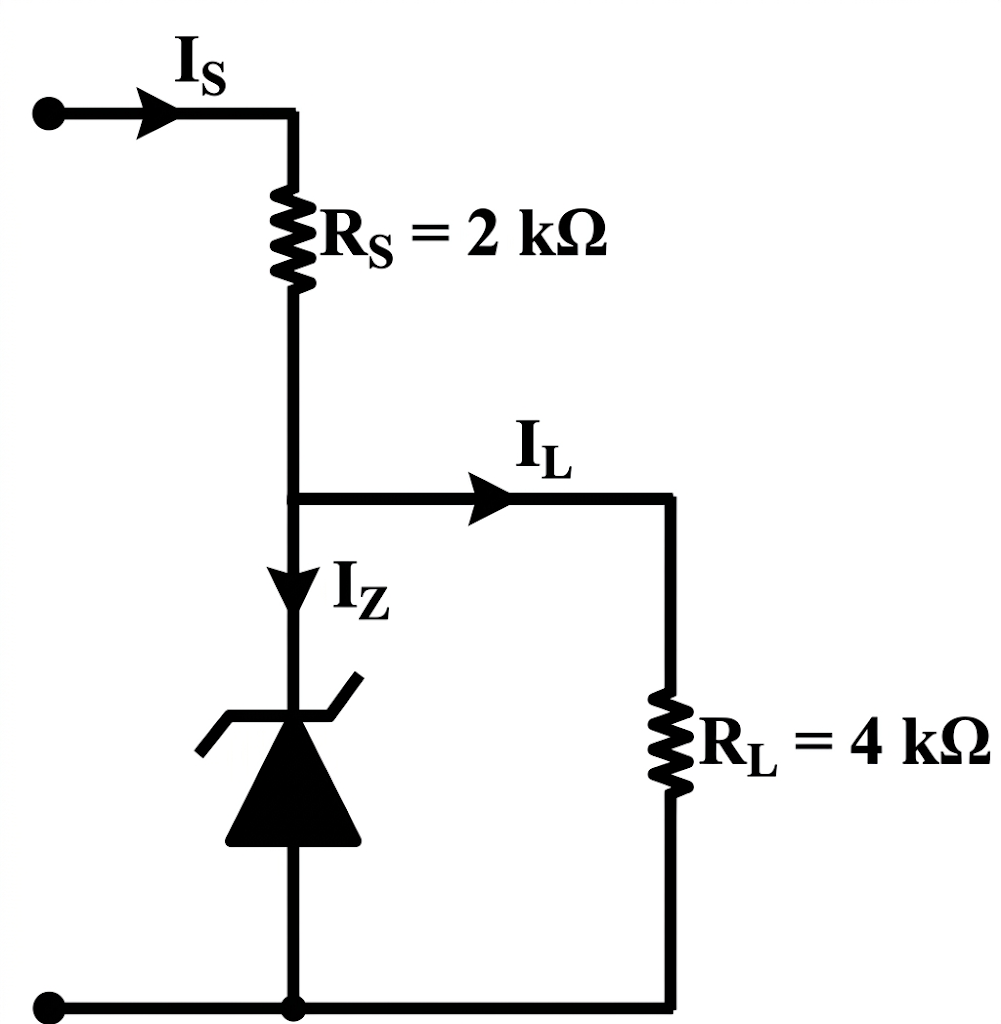

Figure shows a DC voltage regulator circuit, with a Zener diode of breakdown voltage = 6V. If the unregulated input voltage varies between 10 V to 16 V, then what is maximum Zener current?
Text Solution
Verified by ExpertsThe correct answer is:
D
Current in load resistance,
For
volt,
