Nine wires each of resistance r are connected to make a prism as shown in figure. Find the equivalent resistance of the arrangement across
A
AD
B
AB
Text Solution
Verified by ExpertsThe correct answer is:
CHECK THE SOLUTION.
(3)

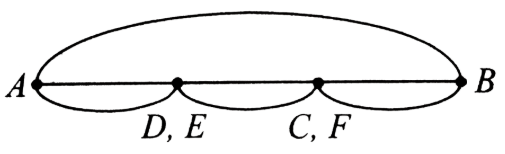

By symmetry, points D and E have the same potential. Similarly, points C and F have the same potential
