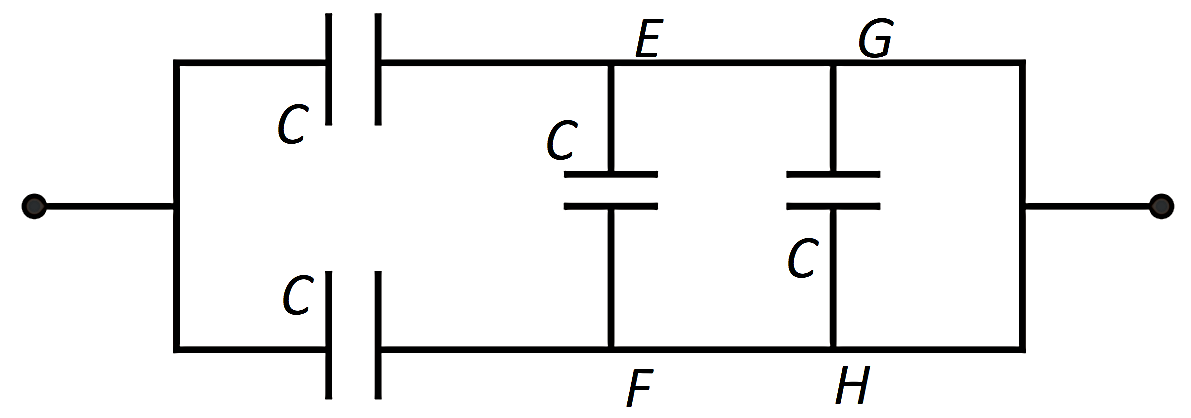

The equivalent capacitance of the combination shown is
A
2C
B
f C
C
D
4C
Text Solution
Verified by ExpertsThe correct answer is:
A
The potential difference across the branches EF & GH is zero. So, the equivalent capacitance will be only due to the combination of two capacitors in parallel.
C eq = C + C
C eq = 2 C
