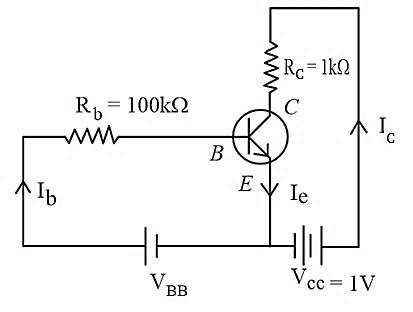

For a given transistor amplifier circuit in CE configuration
and
. Value of base current
is
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
D
Considering the transistor in saturation mode, V ce = 0
Using Kirchhoff s voltage rule,
-I c Rc + Vcc = 0
So,
