A monochromatic light of λ = 5000 Å is incident on two slits separated by a distance of
5 x 10 − 4 m. The interference pattern is seen on a screen placed at a distance of 1 m from the slits. A thin glass plate of thickness 1.5 × 10 − 6 m & refractive index μ = 1.5 is placed between one of the slits & the screen. Find the intensity at the centre of the screen, if the intensity there is Ι 0 in the absence of the plate. Also find the lateral shift of the central maximum.
Text Solution
Verified by ExpertsCHECK THE SOLUTION.
( 0 , 1.5 mm)
Sol.

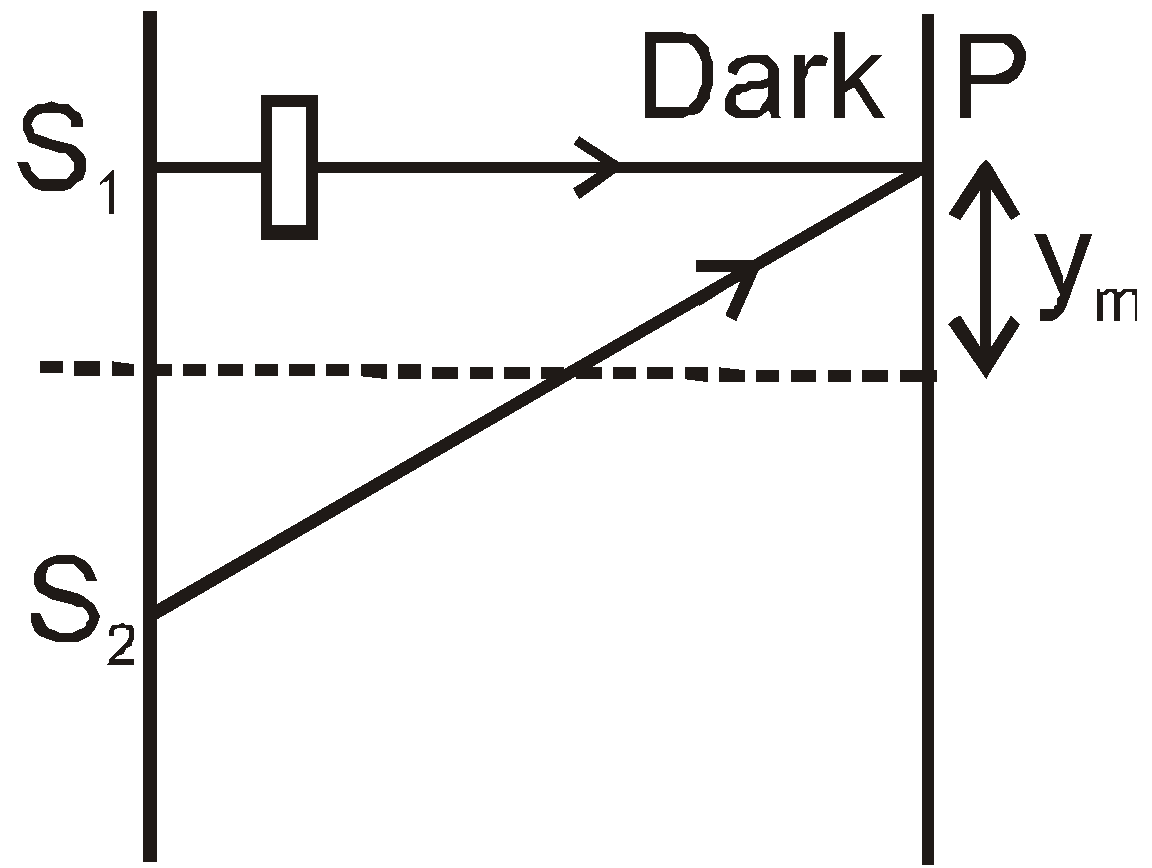

After the thin plate is placed between one of the slits and the screen, an additional path difference [ Δ P = ( μ – 1) t ] is created between the rays emerging out of S 1 and S 2 . Thus
S 1 O – S 2 O = ( μ – 1) t = 0.75 × 10 –6 m
=
⇒ ( μ – 1)t =
Point O would be an interference minimum. Thus intensity at O is zero.
S 2 P – S 2 P =
S 2 P – S 1 P =
– ( μ – 1)t

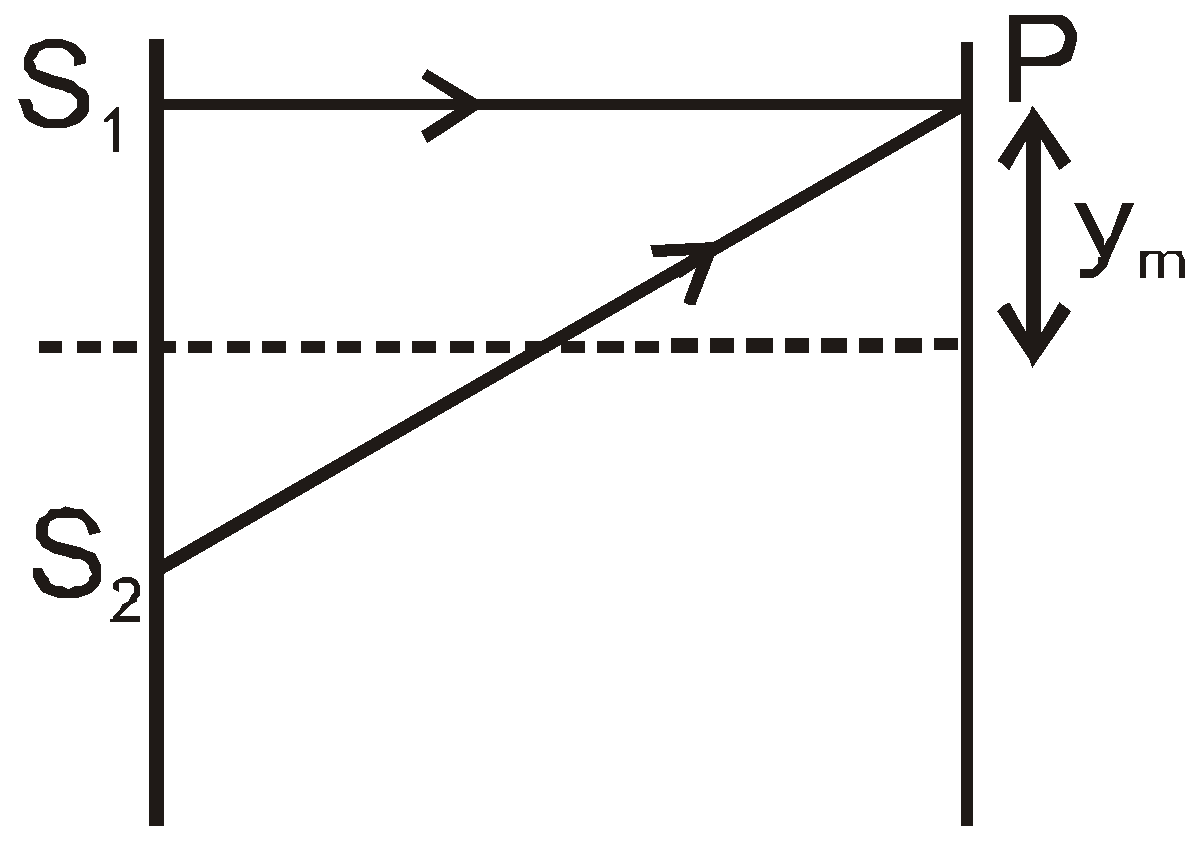

For central maxima, the path difference between the interfering beams is zero.
i.e. S 2 P – S 1 P = 0
⇒
= ( μ – 1)t
⇒ y m =
( μ – 1)t =
×0.75 × 10 –6 = 1.5 mm
Thus, the effect of putting a thin film in front of one of the slits is to shift the central maximum towards that slit.
