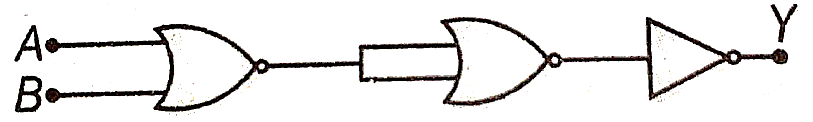

The given electrical network is equivalent to [NEET 2017]
Text Solution
Verified by ExpertsThe correct answer is:
C

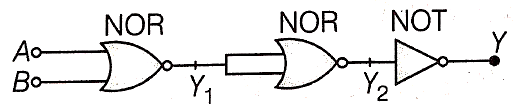

Truth table for given network is
0 | 0 | 1 | 0 | 1 |
1 | 0 | 0 | 1 | 0 |
0 | 1 | 0 | 1 | 0 |
1 | 1 | 0 | 1 | 0 |
Output
of network matches with that of NOR gate.
