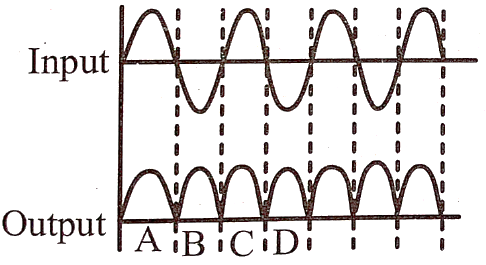

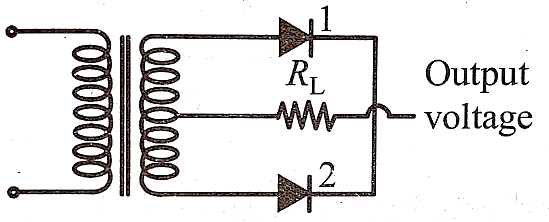

A full wave rectifier circuit along with the input and output voltage is shown in the figure, then output due to diode (2) is
A
B
C
, B, A
D
Text Solution
Verified by ExpertsThe correct answer is:
B
In the positive half cycle of input ac signal diode
is forward biased and
is reverse biased so in the output voltage signal,
and
are due to
. In the negative half cycle of input ac signal
conducts, hence output signals
and
are due to
.
