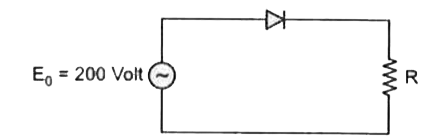

A sinosoidal voltage of peak value 200 volt is connected to a diode and resistor in the circuit shown. If the forward resistance of the diode is negligible compared to , the rms voltage across is approximately (in volt)

A
200
B
100
C
D
283

Share this question

WhatsApp

For Instagram sharing, use “Apps” on mobile or copy the link.

Text Solution

Verified by Experts
The correct answer is:
B

In HWR,
