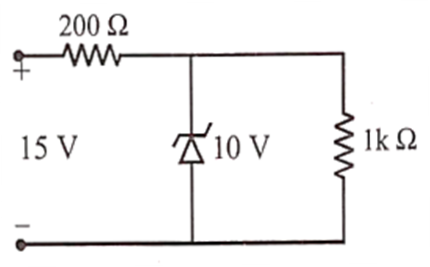

A zener diode having breakdown voltage equal to 10 V, is used in a voltage regulator circuit shown in figure. The current flowing through the diode is
Text Solution
Verified by ExpertsThe correct answer is:
C

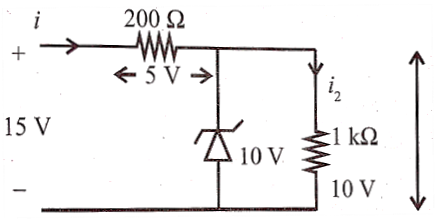

Voltage across zener diode
Clearly, voltage across Zener diode is greater then Zener breakdown voltage. So, diode is in ON state.
Now,
and,
So,
