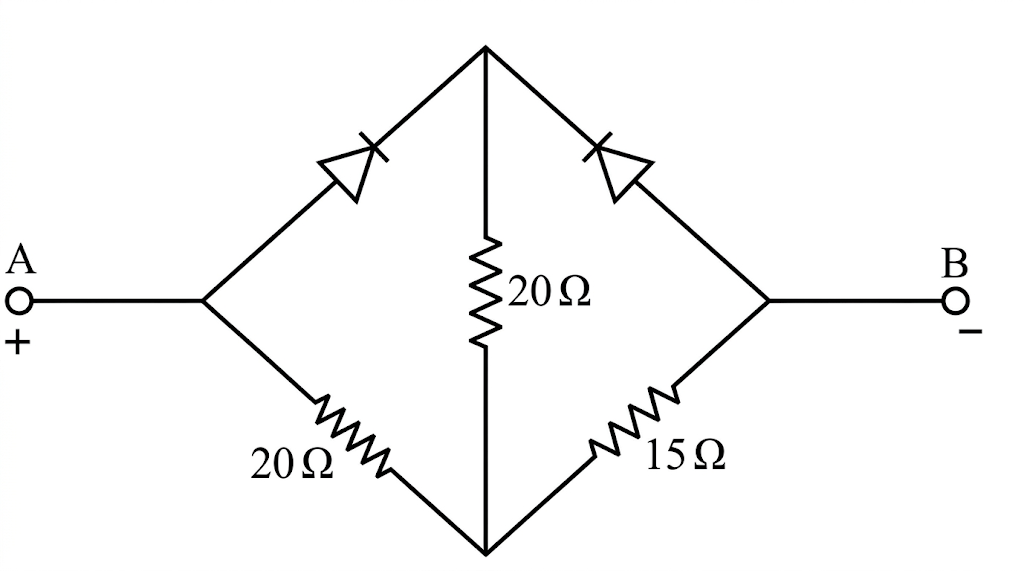

Two ideal diodes are connected in the network as shown in figure. The equivalent resistance between A and B is______
.
Text Solution
Verified by ExpertsThe correct answer is:
25
(25)
The forward biased diode will conduct while the reverse biased will not
Equivalent resistance = 10 + 15 = 25
