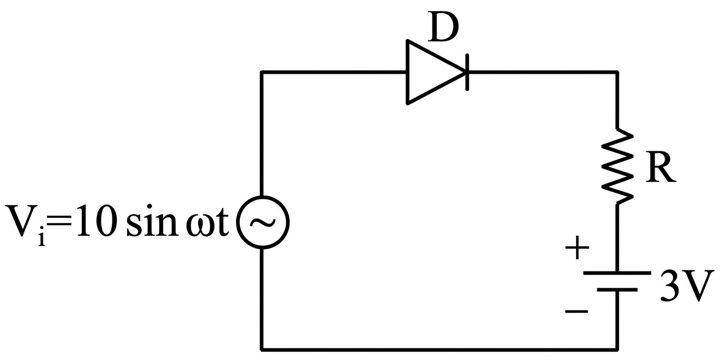

Choose the correct waveform that can represent the voltage across R of the following circuit, assuming the diode is ideal one:

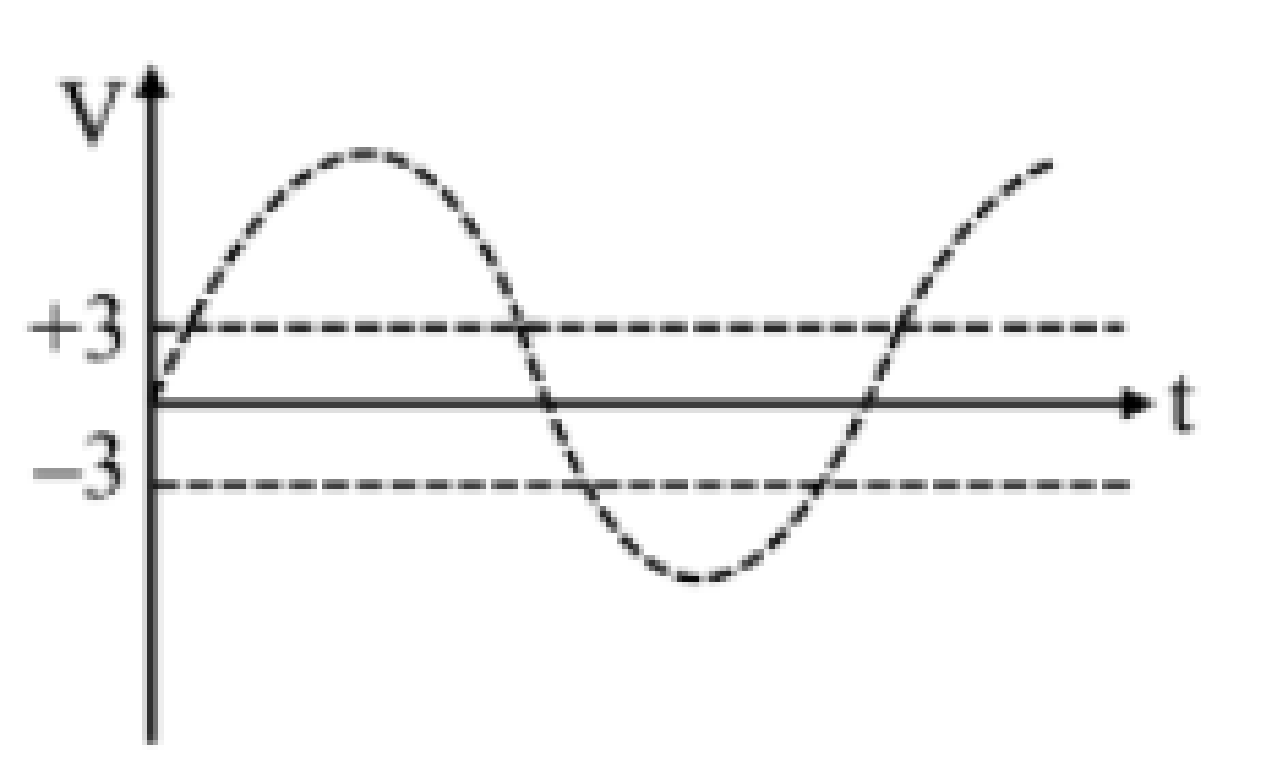

A

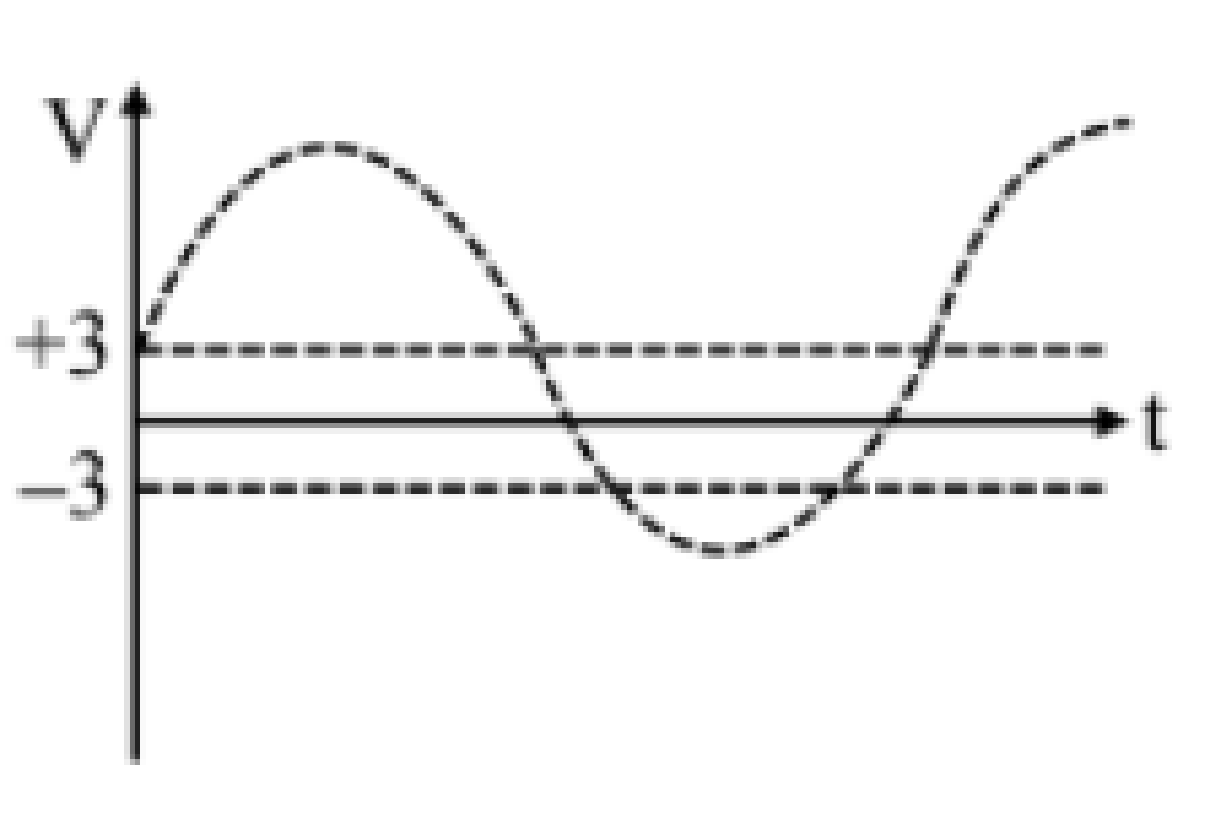

B

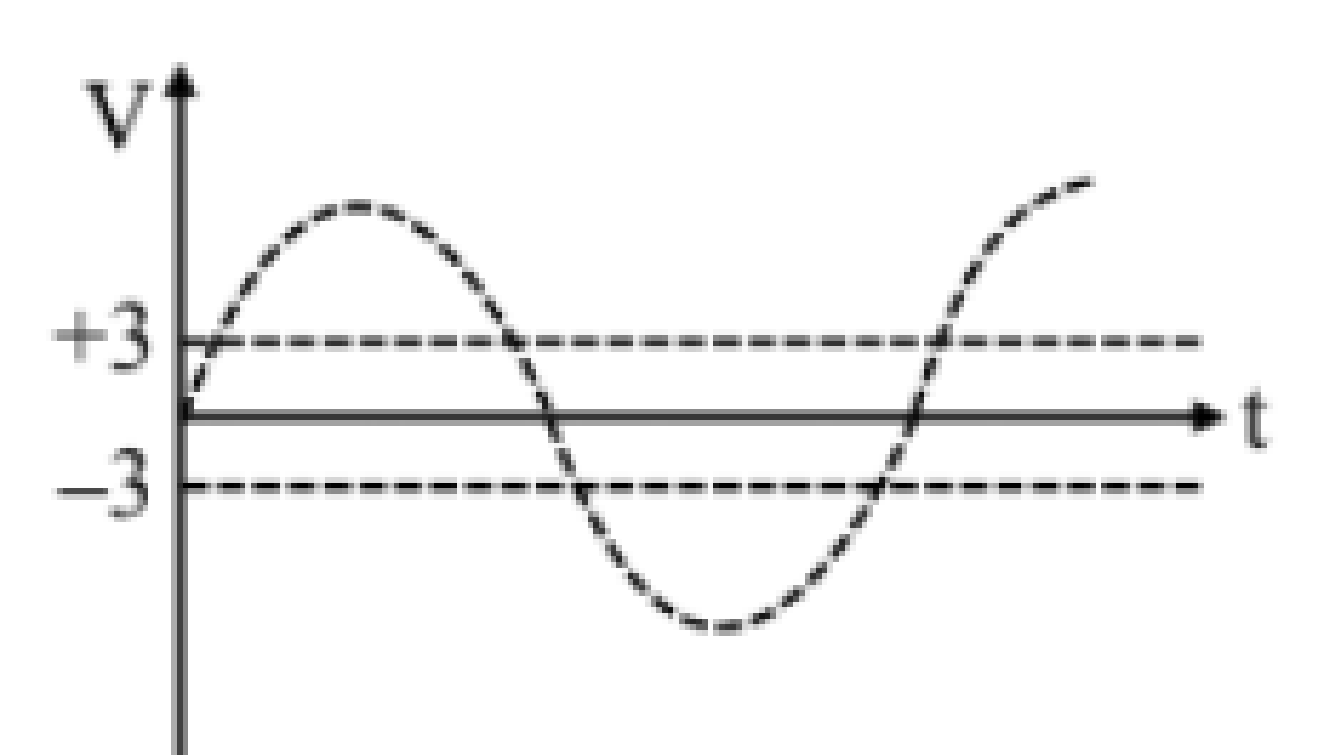

C

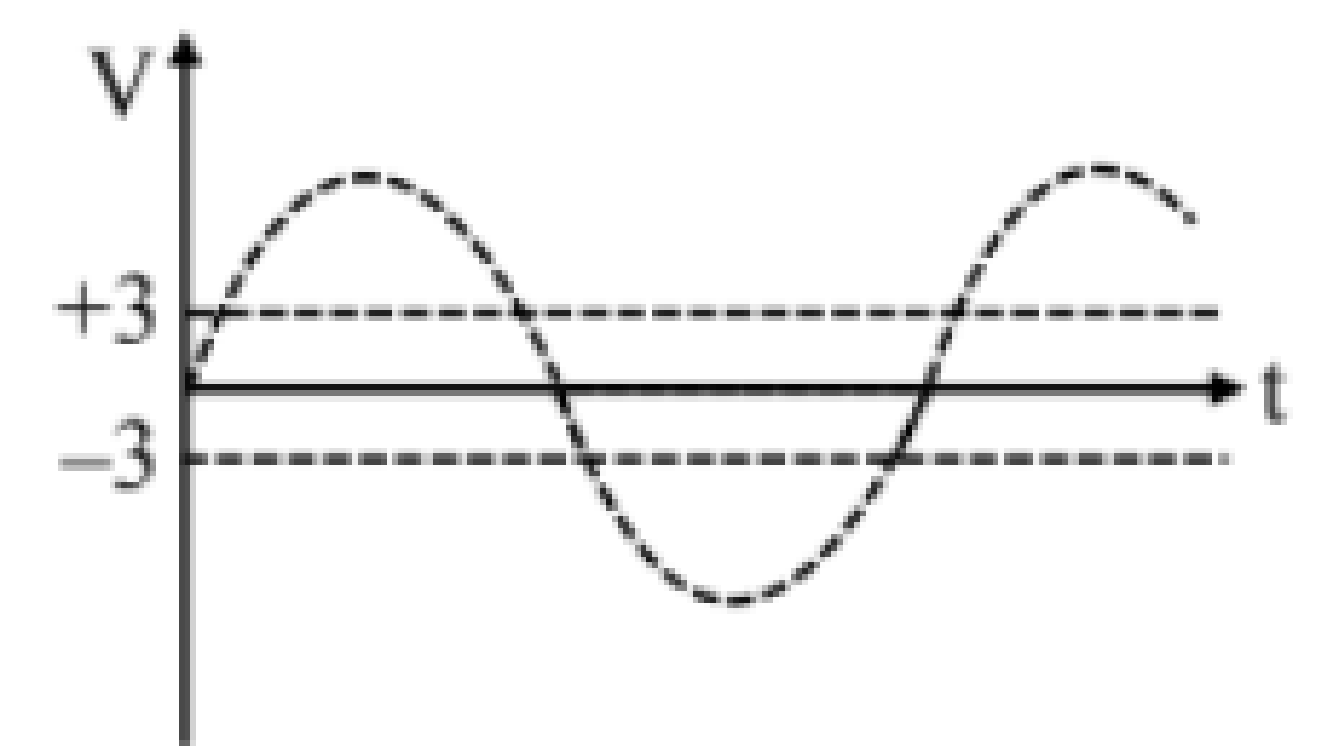

D
Text Solution
Verified by ExpertsThe correct answer is:
C
When
volt,
Because diode will be in forward biased state
When
volt;
Because diode will be in reverse biased state.
