The effective resistance between A and B, if resistance of each resistor is R, will be
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
A

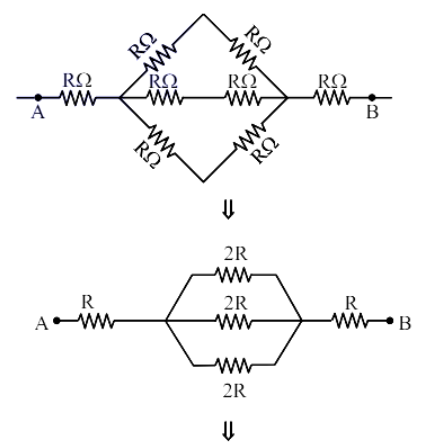

From symmetry we can remove two middle resistance. New circuit is
