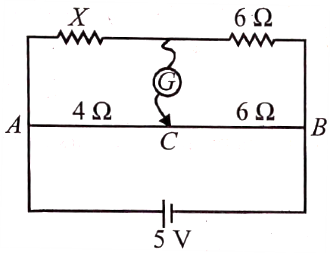

In the circuit shown, a meter bridge is in the its balanced state. The meter bridge wire has a resistance
. The value of unknown resistance X and the current drawn from the battery of negligible resistance is
A
B
C
D
Text Solution
Verified by ExpertsThe correct answer is:
C
Resistance of the part AC
and
In balanced condition,
Equivalent resistance,
Current drawn from battery,
