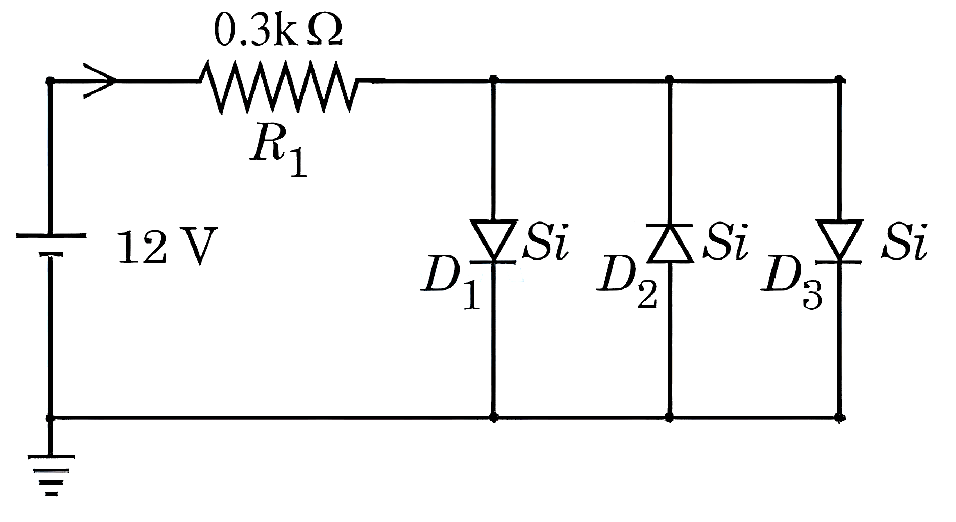

Assuming in forward bias condition there is a voltage drop of 0.7 V across a silicon diode, the current through diode
in the circuit is
mA . (Assume all diodes in the given circuit are identical)
Text Solution
Verified by ExpertsThe correct answer is:
B
1.
Current through diode
