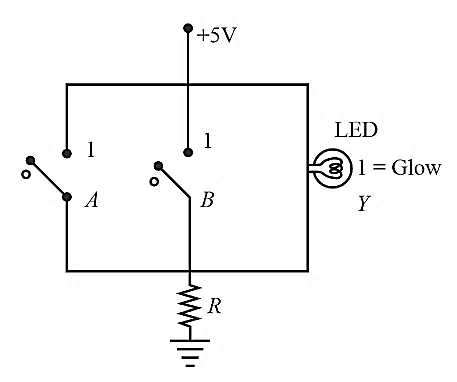

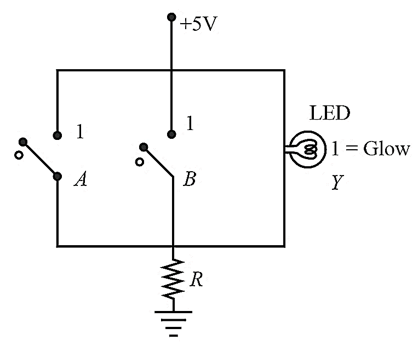

Name the logic gate equivalent to the diagram attached
Text Solution
Verified by ExpertsThe correct answer is:
C
Let's assume that when the path is short, the state is called state 1 and when it is open, the state is called state 0.
Depending up on whether the path is short or not in the circuit, the following table can be obtained:
A | B | Out |
1 | 1 | 0 |
1 | 0 | 0 |
0 | 1 | 0 |
1 | 0 | 1 |
The above table is similar to the truth table corresponding to NOR gate. Hence, the circuit indicates a NOR logic gate.
