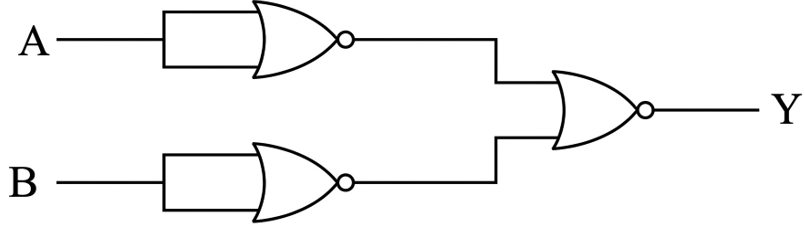

The logic performed by the circuit shown in figure is equivalent to
Text Solution
Verified by ExpertsThe correct answer is:
A
All the gates used in the given configuration are NOR gates. Thus, the output can be found as follows-
The output of the given configuration can also be verified by the following truth table:
Output from first gate | Output from second gate | |||
0 | 0 | 1 | 1 | 0 |
0 | 1 | 1 | 0 | 0 |
1 | 0 | 0 | 1 | 0 |
1 | 1 | 0 | 0 | 1 |
The calculation and the truth table clearly shows that the configuration represents AND gate.
