A metallic wire of resistance
is bent to form a square. The resistance between two diagonal points would be
A
B
C
6 Ω
D
3 Ω
Text Solution
Verified by ExpertsThe correct answer is:
D
When a metallic wire of resistance

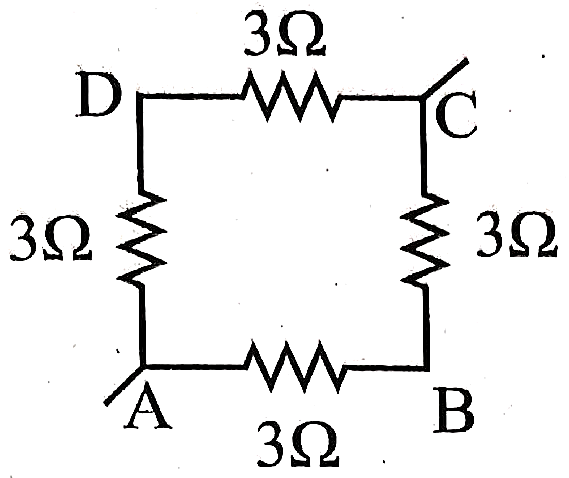

is bent to form a square, the equivalent circuit diagram is as shown in ligure.
Resistance of arm,
Similarly, resistance for arm,
As the arms
and
are in parallel
Their effective resistance is
